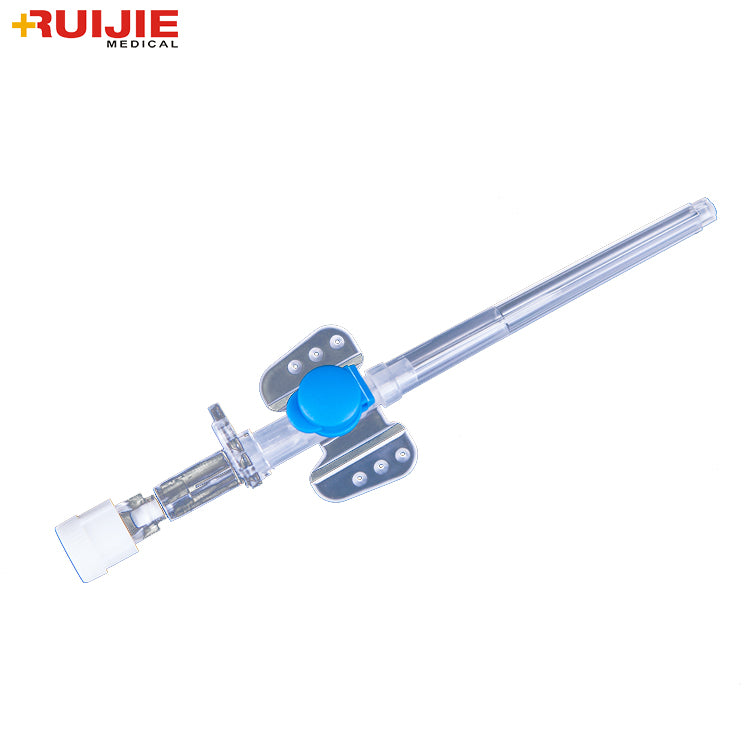

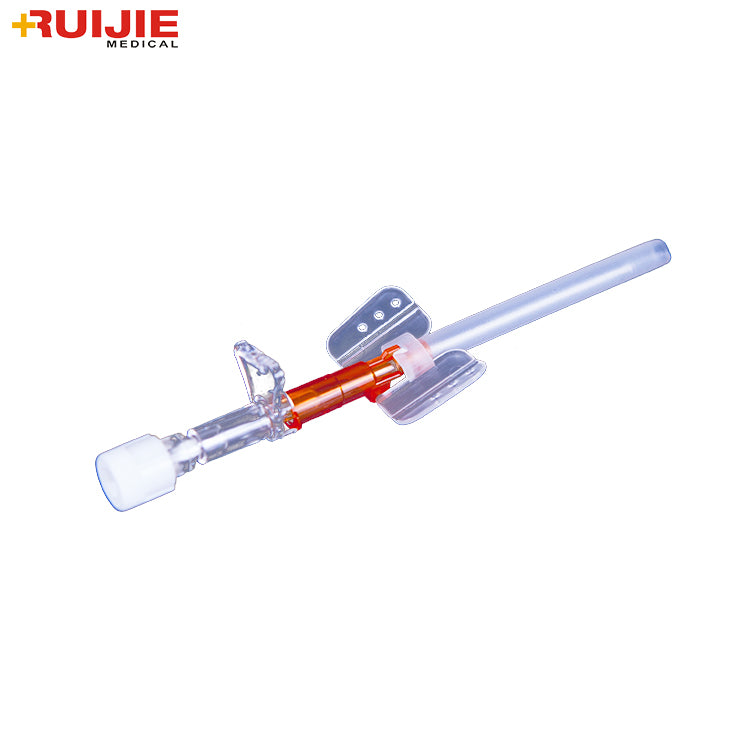

IV Cannula(Wing Type) Without Injection Port IV Catheter

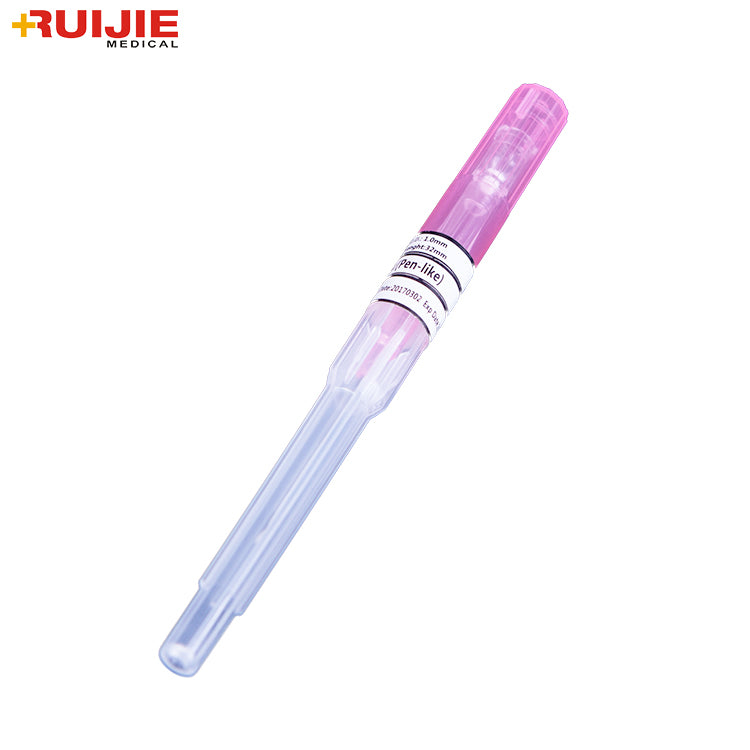

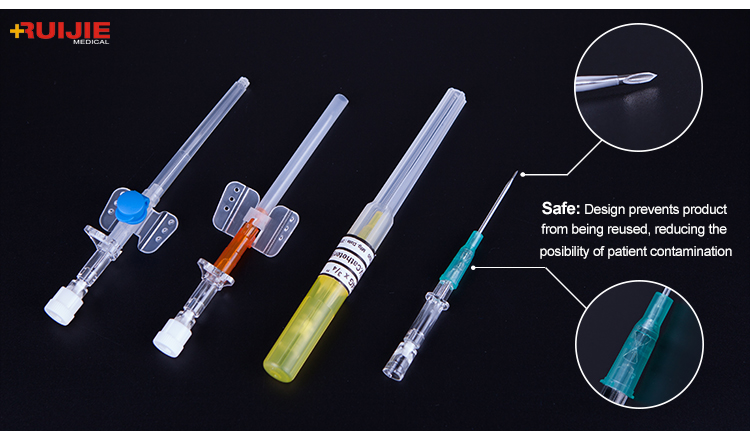

- Types:with Injection port, Butterfly type, Pen-like type,with small wings
- Needle with 3-facet Needle point to reduce penetration force
- Kink resistant and specially tapered Catheter for easy vein puncture with minimum trauma
- Transparent flash back chamber for easy visualization of blood to confirm venipuncture
- With Luer Lock plug
- PTFE / FEP / PU Flex Catheter
- Hydrophobic filter
- Clear or Radio Opaque Catheter

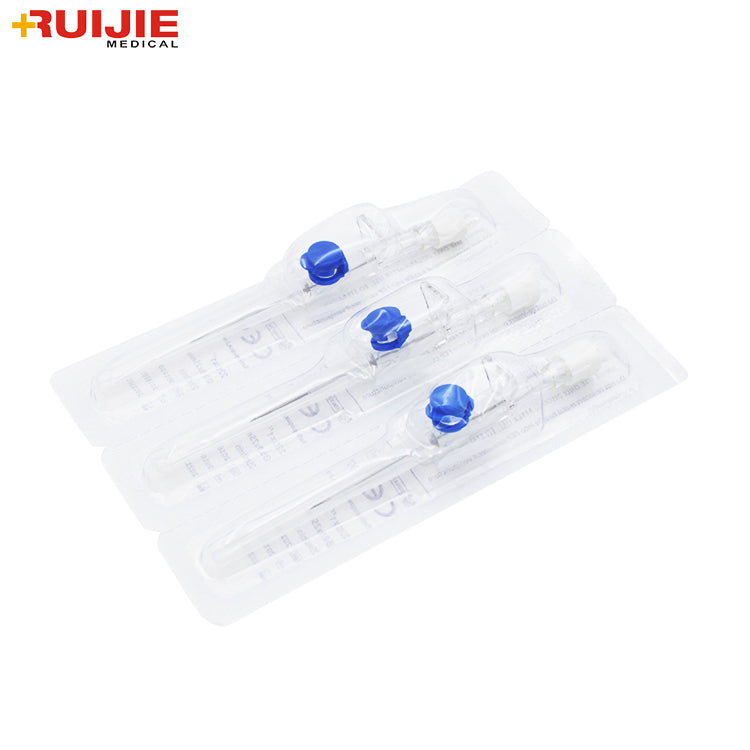

- Packing in Soft Blister
- Thin-wall construction permits high flow rates
- Colour coding for each gauge as per International standards
| Gauge |
Color Code |
Catherer(mm) |
Catheter Effective |
Flow Rate |
| Nomimal O.D |
I.D |
O.D |
Length(mm) |
| 14G |
Orange |
1.9,2.0,2.1,2.2 |
1.45-1.70 |
1.75-2.0 |
45/51±2 |
305(ml/min) |
| 16G |
Grey |
1.6,1.7,1.8 |
1.25-1.30 |
1.50-1.60 |
45/51±2 |
105(ml/min) |
| 17G |
White |
1.4,1.5 |
1.10-1.15 |
1.35-1.4 |
45/51±2 |
110(ml/min) |
| 18G |
DarK Green |
1.2,1.3 |
1.00-1.05 |
1.2-1.25 |
32/51±2 |
75(ml/min) |
| 20G |
Pink |
1.0,1.1 |
0.75-0.84 |
1.00-1.07 |
25/32±2 |
55(ml/min) |
| 22G |
Blue |
0.8,0.9 |
0.60-0.65 |
0.80-0.90 |
19/25±1.5 |
25(ml/min) |
| 24G |
Yellow |
0.7 |
0.50-0.55 |
0.74 |
19±1.5 |
15(ml/min) |
| 26G |
Purple |
0.6 |
0.45 |
0.65 |
19±1.5 |
10(ml/min) |
